Conductor stranding is a fundamental technique in electrical engineering that involves twisting multiple strands of wire together to form a single conductor. Unlike solid conductors, which consist of a single piece of metal, stranded conductors offer increased flexibility, improved durability, and enhanced conductivity in various applications.
Solid conductors are preferred for fixed installations where movement is minimal, while stranded conductors are widely used in applications requiring flexibility, such as power cables, automotive wiring, and aerospace technology.
By understanding conductor stranding and its impact, engineers and manufacturers can make informed decisions when designing electrical systems for maximum efficiency and longevity.

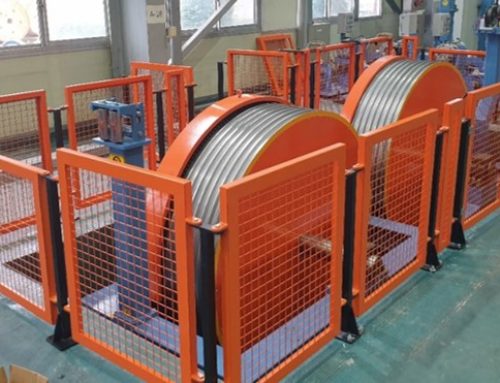

wire and cable machinery
Stranding Classes and Their Applications
When selecting a conductor stranding type, understanding the different stranding classes is crucial. These classes determine the flexibility, durability, and performance of the stranded conductor in various applications. Stranding classes are primarily defined by industry standards, including the American Wire Gauge (AWG) system and IEC standards, ensuring consistency in electrical applications.
Class A & B: Standard Stranding for General Electrical Wiring
- Class A stranding is typically used for power transmission and distribution where mechanical flexibility is not a primary concern.
- Class B is a widely used stranded conductor type for commercial and residential electrical wiring, offering a balance between flexibility and strength.
- Applications: Power distribution, underground cables, residential and commercial electrical systems.
Class C & D: Higher Flexibility for Industrial Applications
- Class C conductors have a higher strand count than Class B, offering improved flexibility.
- Class D is designed for applications where cables need frequent movement or bending, such as industrial machinery.
- Applications: Heavy-duty electrical installations, flexible power cables, machine tools, and control circuits.
Class G, H, & K: Ultra-Flexible Stranding for Dynamic Environments
- These classes have an even higher number of fine strands, increasing their ability to withstand constant movement and vibration.
- Class G & H are commonly used in portable power cables and industrial robotics.
- Class K features extremely fine stranding, making it ideal for applications requiring maximum flexibility, such as welding cables and automotive wiring.
- Applications: Welding equipment, robotics, aerospace, marine wiring, and automotive battery cables.
Specialized Stranding Methods: Custom Solutions for Extreme Conditions
- Compressed & Compact Stranding: Used to reduce the overall diameter of the conductor while maintaining the same electrical properties.
- Segmental Stranding: Optimized for lower electrical resistance, enhancing power efficiency.
- Sector Stranding: Found in high-voltage cables to improve conductor spacing and insulation properties.
- Applications: High-voltage transmission, data centers, renewable energy systems, and underground power distribution.
Choosing the right stranding class is critical for ensuring optimal performance, durability, and efficiency in electrical applications. Whether for residential wiring, industrial machinery, or high-voltage power transmission, the appropriate class can enhance electrical conductivity, reduce mechanical stress, and increase cable lifespan.
Would you like any refinements or additional details in this section? 🚀
drum twister hattı assembling and armouring line
Benefits of Stranded Conductors
Stranded conductors offer several advantages over solid conductors, making them the preferred choice for various applications in electrical and communication systems. Below are some of the key benefits of using stranded conductors:
1. Increased Flexibility and Durability
One of the most significant advantages of stranded conductors is their superior flexibility. Unlike solid conductors, which are rigid and prone to breaking when bent repeatedly, stranded conductors can withstand frequent movement and bending. This makes them ideal for applications where cables need to be routed through tight spaces or used in dynamic environments, such as robotics, automotive wiring, and industrial machinery.
2. Enhanced Mechanical Strength
Stranded conductors provide greater mechanical durability compared to solid conductors. The multiple strands of wire work together to distribute mechanical stress evenly, reducing the risk of fatigue and breakage over time. This makes stranded conductors particularly useful in high-vibration environments like transportation systems, aerospace, and heavy machinery.
3. Reduced Electromagnetic Interference (EMI)
Stranded conductors help minimize electromagnetic interference (EMI) due to their structure. The multiple strands create a more uniform current distribution, which reduces the electromagnetic fields surrounding the conductor. This is particularly beneficial for applications where signal integrity is critical, such as data transmission cables, telecommunications, and medical devices.
4. Lower Skin Effect in High-Frequency Applications
The skin effect is a phenomenon where alternating current (AC) tends to flow more on the outer surface of a conductor rather than through its core. This can lead to increased resistance and power loss in high-frequency applications. Stranded conductors help mitigate this issue by increasing the overall surface area available for current flow, improving efficiency in applications like RF (radio frequency) transmission, audio cables, and power distribution systems.
5. Better Heat Dissipation and Thermal Performance
Stranded conductors have a larger surface area compared to solid conductors of the same gauge, which enhances heat dissipation. This helps prevent overheating and improves overall thermal management, making them suitable for high-power electrical circuits and energy-efficient wiring systems.
6. Improved Flex Life for Long-Term Reliability
Flex life refers to a wire’s ability to endure continuous bending and flexing without breaking. Stranded conductors have a significantly longer flex life than solid conductors, making them the go-to choice for applications requiring constant motion, such as in conveyor systems, robotics, and medical equipment.
7. Easier Installation and Handling
Compared to solid conductors, stranded conductors are easier to install due to their flexibility. They can be pulled through conduits and routed more efficiently, reducing labor costs and installation time. This makes them highly preferred in commercial buildings, residential wiring, and portable electronic devices.
Stranded conductors provide greater flexibility, durability, and efficiency, making them indispensable in modern electrical and communication systems. Their ability to withstand mechanical stress, minimize electromagnetic interference, and improve thermal performance ensures that they remain the optimal choice for dynamic and high-performance applications. When selecting a conductor type, understanding these benefits can help engineers and electricians make the best decision for their specific needs.
Key Factors in Choosing the Right Stranding Type
Selecting the right conductor stranding type is crucial for optimizing electrical performance, mechanical durability, and cost-efficiency. Several key factors must be considered to ensure the best match for a specific application.
1. Current Carrying Capacity & Electrical Performance
The stranding type directly affects a conductor’s ability to carry current efficiently. Stranded conductors, due to the presence of air gaps between individual wires, generally have slightly higher resistance than solid conductors. However, their flexibility makes them ideal for dynamic applications. To optimize electrical performance:
- Low-resistance materials (such as high-purity copper) should be preferred.
- Stranding configuration should be chosen based on the required current load.
- Surface area effects should be considered, as finer strands may slightly increase resistance.
2. Mechanical Durability & Resistance to Bending
The mechanical robustness of a conductor is largely determined by its stranding structure. The more strands a conductor has, the more flexible and resistant it is to bending and mechanical stress. Factors to evaluate include:
- High-movement environments (e.g., robotic systems) require high-strand-count conductors.
- Vibration-prone applications (such as automotive and aerospace wiring) benefit from flexible stranded conductors.
- Repeated flexing can cause fatigue in solid conductors, making stranded versions preferable for long-term durability.
3. Environmental Factors & Protective Coatings
Environmental conditions such as humidity, temperature fluctuations, and chemical exposure can impact conductor longevity. Proper insulation and coatings are essential for maintaining conductivity and mechanical strength in harsh environments. Key considerations:
- Corrosion-resistant materials (such as tinned copper or aluminum alloys) are recommended for humid or marine conditions.
- High-temperature insulation should be used for extreme heat environments.
- Chemical-resistant coatings are crucial for conductors exposed to industrial chemicals.
4. Cost vs. Performance Trade-offs
While stranded conductors offer flexibility and durability, they tend to be more expensive due to additional manufacturing complexity. Budget-conscious projects should balance cost with performance:
- Solid conductors are cost-effective for fixed installations with minimal movement.
- Class B or C stranded conductors provide a middle ground between cost and flexibility.
- Highly flexible Class K conductors are ideal for applications requiring constant movement, despite their higher cost.
5. Signal Transmission & Skin Effect
For high-frequency applications, stranded conductors help reduce the skin effect, where current tends to flow near the surface of the conductor. This is particularly relevant for:
- RF and data cables, where minimizing signal loss is critical.
- High-speed digital transmission systems, where stranded conductors improve performance.
- Aerospace and telecom industries, where signal integrity is crucial.
Choosing the right conductor stranding type depends on multiple factors, including electrical efficiency, mechanical stress resistance, environmental durability, and cost. By analyzing specific application requirements and selecting the most suitable stranding type, manufacturers and engineers can ensure optimal performance, longevity, and cost-effectiveness in electrical and electronic systems.
How Conductor Stranding Affects Electrical Efficiency
Conductor stranding plays a crucial role in determining the electrical efficiency of cables and wires. The way conductors are stranded impacts their resistance, conductivity, and overall performance in various applications. Below are key factors explaining how conductor stranding influences electrical efficiency:
1. Resistance and Conductivity
- The arrangement of individual strands in a conductor affects its electrical resistance.
- Stranded conductors generally have slightly higher resistance than solid conductors due to the presence of small air gaps between strands.
- The use of compact stranding or compressed stranding can help minimize resistance and improve current flow.
2. Skin Effect and High-Frequency Performance
- The skin effect refers to the tendency of alternating current (AC) to concentrate near the outer surface of a conductor.
- In high-frequency applications, stranded conductors reduce the skin effect, allowing better current distribution.
- Litz wire, a special type of stranded conductor, is designed to minimize losses in high-frequency applications such as transformers and radio-frequency (RF) circuits.
3. Flexibility and Mechanical Stability
- Stranded conductors are more flexible than solid conductors, allowing them to withstand bending and vibrations without breaking.
- This enhanced mechanical stability ensures long-term reliability in dynamic environments, reducing the risk of failure due to metal fatigue.
4. Heat Dissipation and Efficiency
- Efficient heat dissipation is critical in electrical systems to prevent overheating.
- Stranded conductors provide better airflow and cooling compared to solid conductors, reducing the risk of thermal degradation.
- This is especially important in power transmission and distribution networks, where excessive heat can cause energy losses and system failures.
5. Electromagnetic Interference (EMI) and Signal Integrity
- Stranded conductors can help reduce electromagnetic interference (EMI) by improving the uniformity of current distribution.
- This is particularly beneficial in data transmission cables, where maintaining signal integrity is essential.
- Proper shielding and twisting of stranded conductors can further minimize EMI and enhance noise immunity.
6. Material Selection and Performance Optimization
- The choice of material also affects conductor performance. Copper-stranded conductors offer superior conductivity compared to aluminum but are heavier and more expensive.
- Advances in alloy technology and composite conductors are helping optimize electrical performance while reducing weight and cost.
Understanding how conductor stranding affects electrical efficiency is vital for engineers and manufacturers designing reliable electrical and communication systems. By selecting the right stranding type, optimizing material choices, and considering factors like frequency, resistance, and heat dissipation, performance can be maximized while minimizing energy losses.
drum twister hattı assembling and armouring line
Future Trends in Conductor Stranding Technology
The conductor stranding industry is continuously evolving to meet the demands of modern electrical and communication systems. With advancements in material science, automation, and energy efficiency, new trends are emerging that will redefine how stranded conductors are designed and manufactured. Below are the key developments shaping the future of conductor stranding technology.
1. High-Performance Materials for Enhanced Conductivity
Traditional stranded conductors are primarily made of copper and aluminum. However, advanced alloys and composite materials are being developed to enhance conductivity, durability, and corrosion resistance. For example, nano-carbon-infused copper conductors improve electrical efficiency while reducing weight, making them ideal for aerospace and automotive applications.
2. Smart Stranding Techniques for Improved Efficiency
Innovations in precision stranding and AI-driven manufacturing processes allow for greater control over conductor geometry. Optimized strand alignment minimizes gaps between wires, reducing electrical resistance and enhancing current-carrying capacity. This is particularly beneficial for high-voltage and high-frequency applications where efficiency is critical.
3. Sustainability and Eco-Friendly Manufacturing
The push for environmentally sustainable practices is influencing conductor production. Manufacturers are adopting low-carbon copper refining techniques and recycling initiatives to minimize waste. Additionally, the use of bio-based insulation materials is gaining traction, reducing reliance on petroleum-based components.
4. Ultra-Flexible Conductors for Robotics and Wearable Tech
The growing demand for flexible and lightweight conductors is driving research into superfine stranded wire. These ultra-flexible conductors, often incorporating micro-stranding techniques, provide superior bending performance, making them ideal for robotic automation, medical devices, and wearable technology.
5. AI and Automation in Cable Manufacturing
Artificial intelligence (AI) and machine learning are transforming conductor production. Automated stranding machines equipped with real-time sensors can detect irregularities in strand formation, ensuring consistent quality and reducing manufacturing defects. AI-driven predictive maintenance is also enhancing production efficiency by preventing downtime.
6. High-Frequency and Low-Loss Conductors
With the rise of 5G networks and next-generation data transmission, conductors designed for low signal loss and high-speed performance are becoming crucial. Litz wire stranding techniques, which reduce skin effect losses in high-frequency applications, are gaining widespread adoption in telecommunications and power electronics.
7. Enhanced Durability for Harsh Environments
Stranded conductors used in extreme conditions—such as offshore wind farms, deep-sea cabling, and space exploration—require advanced coatings and protective layers. Innovations in self-healing insulating materials and corrosion-resistant stranded wire ensure longer service life and reduced maintenance costs.
As technology advances, conductor stranding is becoming more sophisticated, efficient, and sustainable. With the integration of high-performance materials, smart manufacturing, and AI-driven quality control, the future of stranded conductors looks promising. These innovations will not only enhance electrical efficiency and durability but also support the development of next-generation industries, including renewable energy, autonomous systems, and high-speed data transmission.
Merkezi iletken Bukum ve Zirhlama Hatti Central Stranding Armouring Line
Conclusion
In summary, Conductor Stranding plays a crucial role in the electrical and cable manufacturing industries, offering a balance between flexibility, conductivity, and mechanical strength. Selecting the right stranding type depends on various factors, including application requirements, environmental conditions, and cost considerations.
Key takeaways from this guide include:
- Flexibility vs. rigidity: Stranded conductors provide enhanced flexibility, making them ideal for dynamic applications, while solid conductors are more suitable for stationary installations.
- Electrical efficiency: Proper conductor stranding minimizes resistance, reducing energy loss and improving conductivity.
- Mechanical durability: The stranding process reinforces conductors, increasing their ability to withstand vibrations, bending, and harsh environmental conditions.
- Application-specific selection: Industries such as automotive, aerospace, telecommunications, and renewable energy rely on different stranding methods to optimize performance.
As technology advances, the future of conductor stranding will likely introduce more efficient, lightweight, and eco-friendly solutions, further enhancing energy transmission and reducing material waste.
By understanding these fundamentals, professionals can make informed decisions, ensuring optimal performance and longevity for their electrical systems. Whether designing a high-voltage power line or a flexible robotic cable, the correct conductor stranding technique is the key to achieving efficiency and reliability.
